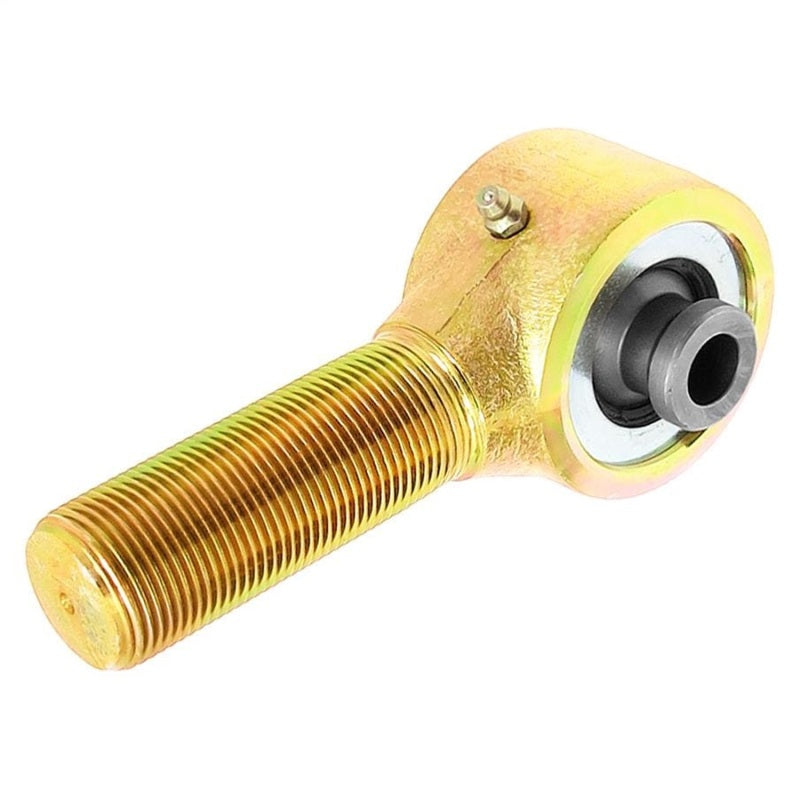

RockJock Johnny Joint 2-1/2in Narrow Rod End (1-1/4in RH Thread 2.375in x .718in Ball)

RockJock Johnny Joint 2-1/2in Narrow Rod End (1-1/4in RH Thread 2.375in x .718in Ball)

Vendor: RockJock
SKU: ROKCE-9114N-27
Availability: Out of stock
Product type: Suspension Arms & Components
$66.99
Description
RockJocks narrow forged Johnny Joints for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via a high-density urethane bushing that encases the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint is a 2 1/2 in. diameter, fitted with a zerk fitting for greasing, 2 1/4 in. of 1 1/4 in.-12 right hand threads on the shank, and a 2.375 in. mounting width offset ball with a .718 in. thru bolt hole. Finished in gold zinc plating.
Photo - Primary
RockJock Johnny Joint 2-1/2in Narrow Rod End (1-1/4in RH Thread 2.375in x .718in Ball)
$66.99
