RockJock Johnny Joint Rod End 2 1/2in Weld-On 2.625in X .562in Ball Ext. Greased

RockJock Johnny Joint Rod End 2 1/2in Weld-On 2.625in X .562in Ball Ext. Greased

Vendor: RockJock
SKU: ROKCE-9110P
Availability: In stock
Product type: Suspension Arms & Components
$62.99
Description

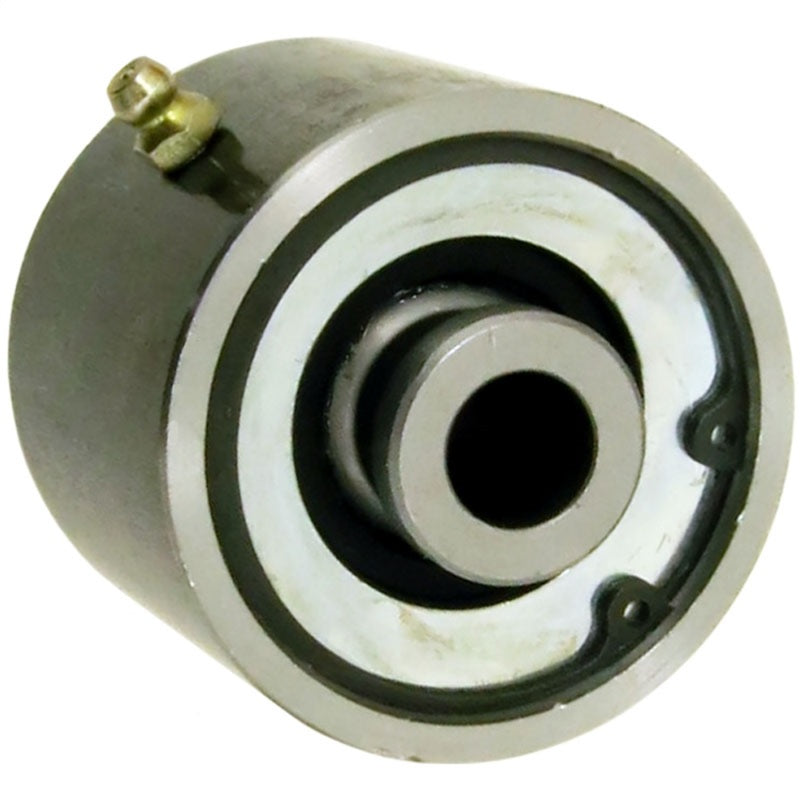

RockJocks weld-on Johnny Joints for fabricators and suspension system builders offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. The outer shell is weldable .180 in. wall machined DOM tubing that is fitted with a zerk fitting for greasing. This specific joint is a 2 1/2 in. o.d. and features a 2.625 in. mounting width and a .5625 in. thru bolt hole.
Photo - Primary
RockJock Johnny Joint Rod End 2 1/2in Weld-On 2.625in X .562in Ball Ext. Greased
$62.99
