RockJock Johnny Joint Rod End 2 1/2in Narrow Forged 2.625in X .562in Ball 7/8in-14 RH Thread Shank

RockJock Johnny Joint Rod End 2 1/2in Narrow Forged 2.625in X .562in Ball 7/8in-14 RH Thread Shank

Vendor: RockJock
SKU: ROKCE-9117N
Availability: Out of stock
Product type: Suspension Arms & Components
$66.99
Description

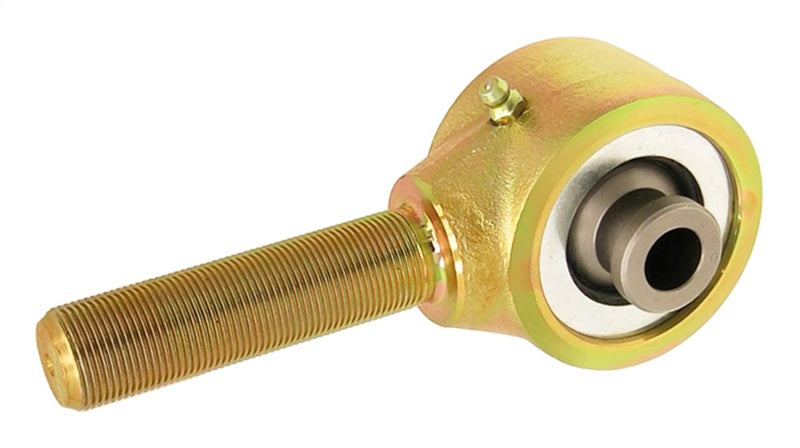

RockJocks narrow forged Johnny Joints for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushing that encases the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint is a 2 1/2 in. diameter, fitted with a zerk fitting for greasing, 2 1/4 in. of 7/8 in.-14 right hand threads on the shank, and a 2.625 in. mounting width ball with a .562 in. thru bolt hole. Finished in gold zinc plating.
Photo - Primary
RockJock Johnny Joint Rod End 2 1/2in Narrow Forged 2.625in X .562in Ball 7/8in-14 RH Thread Shank
$66.99
