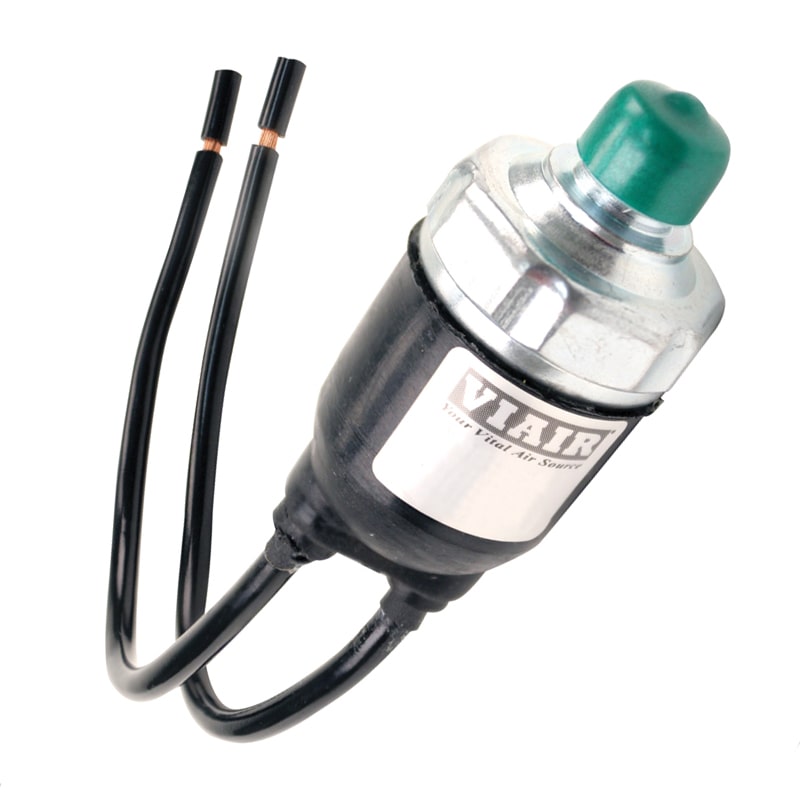

Pressure Switch (Sealed)
  • Pressure Switch (Sealed)
Pressure Switch (Sealed)

Pressure Switch (Sealed)

Vendor: VIAIR
SKU: 90212
Availability: Out of stock
Product type: Air Suspension & Compressor Accessories
$34.88 $38.75
Configuration: 85 PSI On, 105 PSI Off, 1/8" NPT, 12 GA wires (30-AMP)
Description

Our sealed pressure switches are designed to protect from elements (dust and moisture) and most importantly designed for long-term reliabilty, consistent performance and accuracy. They act as a safety mechanism by automatically shutting off or turning on based on specific pressure levels.  Made to be used in diverse applications such as Automotive and or Industrial.
Available for 12V & 24V applications and with 1/4" or 1/8" M NPT Port fittings.

Tolerance: ± 5% of specified pressures.
Torque spec for 1/8” NPT fittings is 10-11 ft. lbs.
Torque spec for 1/4" and 3/8" NPT is 12-15 lb-ft
Pressure Switch (Sealed)
$34.88 USD
$38.75 USD $34.88 USD
Configuration: 85 PSI On, 105 PSI Off, 1/8" NPT, 12 GA wires (30-AMP)
Pressure Switch (Sealed)
Pressure Switch (Sealed)
$34.88 $38.75
