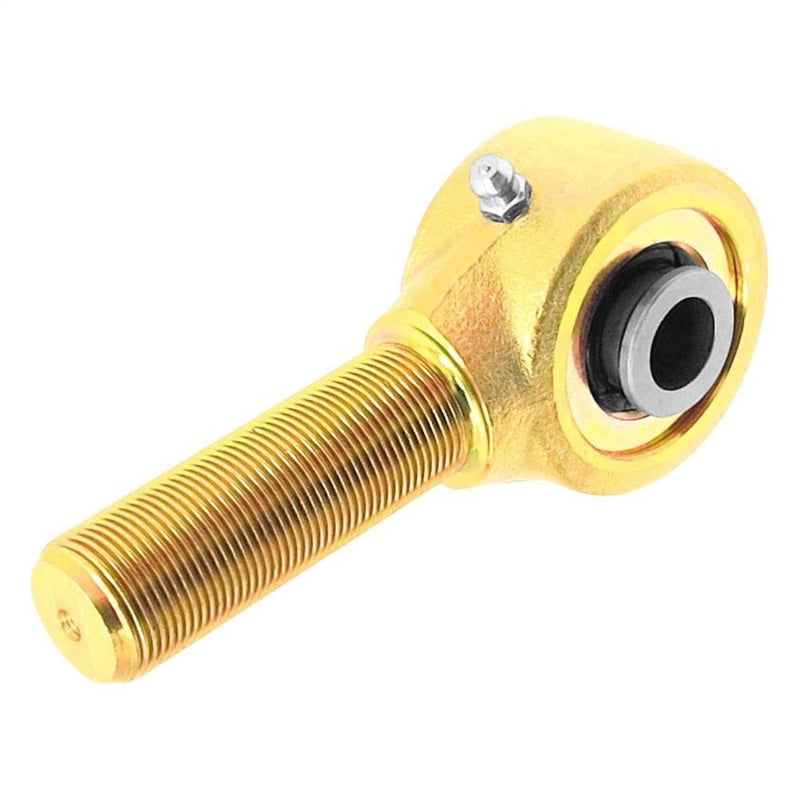

RockJock Johnny Joint 2in Narrow Rod End (7/8in RH Thread 2in x .515in Ball)

RockJock Johnny Joint 2in Narrow Rod End (7/8in RH Thread 2in x .515in Ball)

Vendor: RockJock
SKU: ROKRJ-301600-102
Availability: Out of stock
Product type: Suspension Arms & Components
$66.99
Description
RockJocks narrow forged Johnny Joints for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint features a narrow 2 in. diameter joint body, fitted with a zerk fitting for greasing, 2.3 in. of 7/8 in.-14 right hand threads on the shank, and a 2 in. mounting width ball with a .515 thru bolt hole. Finished in gold zinc plating.
Photo - Primary
RockJock Johnny Joint 2in Narrow Rod End (7/8in RH Thread 2in x .515in Ball)
$66.99
