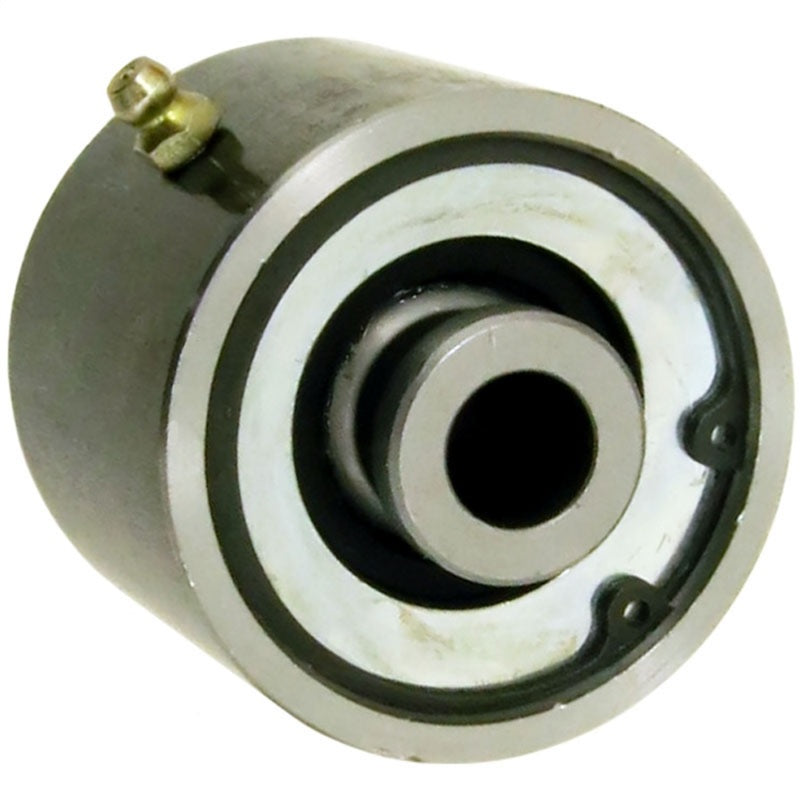

RockJock Johnny Joint Rod End 2 1/2in Weld-On 3.150in x .718in Ball Ext. Greased

RockJock Johnny Joint Rod End 2 1/2in Weld-On 3.150in x .718in Ball Ext. Greased

Vendor: RockJock
SKU: ROKRJ-330000-101
Availability: Out of stock
Product type: Suspension Arms & Components
$62.99
Description
RockJocks weld-on Johnny Joints for fabricators and suspension system builders offer 30 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. The outer shell is weldable .180 in. wall machined DOM tubing that is fitted with a zerk fitting for greasing. This specific joint features a 3.150 in. mounting width ball with a .718 in. thru hole.
Photo - Primary
RockJock Johnny Joint Rod End 2 1/2in Weld-On 3.150in x .718in Ball Ext. Greased
$62.99
