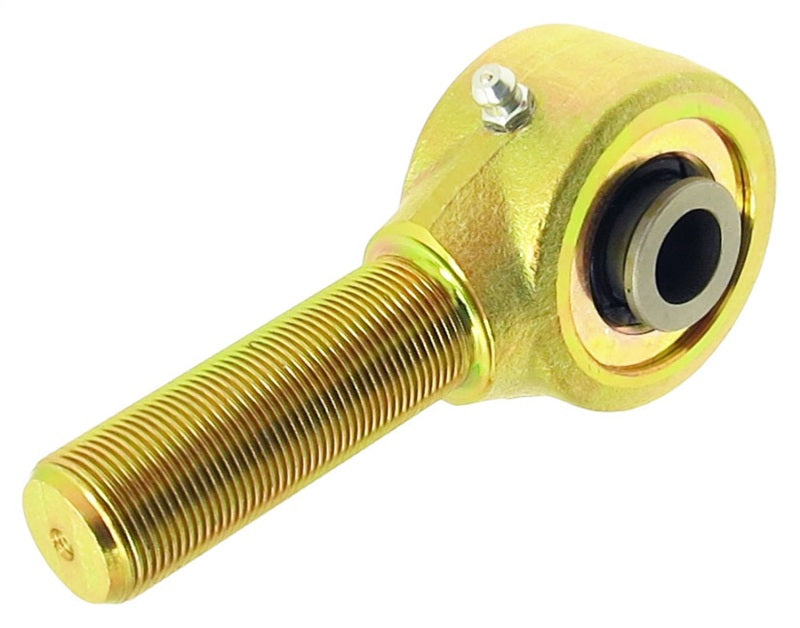

RockJock Johnny Joint Rod End 2in Narrow Forged 7/8in-14 LH Threads 2in. x .515in Ball

RockJock Johnny Joint Rod End 2in Narrow Forged 7/8in-14 LH Threads 2in. x .515in Ball

Vendor: RockJock
SKU: ROKRJ-301600-101
Availability: Pre-order
Product type: Suspension Arms & Components
$70.99
Description
RockJocks narrow forged Johnny Joints for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint features a narrow 2 in. diameter joint body, fitted with a zerk fitting for greasing, 2.3 in. of 7/8 in.-14 left hand threads on the shank, and a 2 in. mounting width ball with a .515 thru bolt hole. Finished in gold zinc plating.
Photo - Primary
RockJock Johnny Joint Rod End 2in Narrow Forged 7/8in-14 LH Threads 2in. x .515in Ball
$70.99
