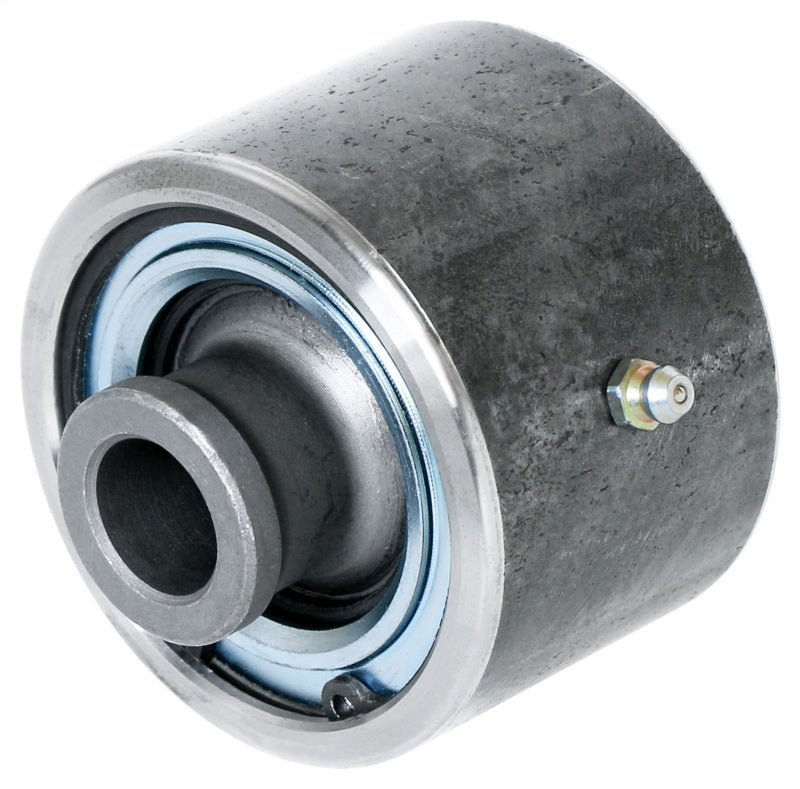

RockJock Johnny Joint Rod End 3in Narrow Weld-On Chromoly 3.250in x .750in Ball Ext. Greased

RockJock Johnny Joint Rod End 3in Narrow Weld-On Chromoly 3.250in x .750in Ball Ext. Greased

Vendor: RockJock
SKU: ROKRJ-365000-101
Availability: Out of stock
Product type: Suspension Arms & Components
$131.99
Description
RockJocks narrow style weld-on Johnny Joints for fabricators and suspension system builders offer up to 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushings that encase the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. The 3 in. narrow style outer shell is weldable CNC machined chromoly tubing that is fitted with a zerk fitting for greasing. This specific joint features a 3.250 in. mounting width ball with a .750 in. thru hole.
