RockJock TJ/LJ/XJ/MJ/ZJ Johnny Joint Rod End 2in Narrow Front Trac Bar 1in-14 RH Thread

RockJock TJ/LJ/XJ/MJ/ZJ Johnny Joint Rod End 2in Narrow Front Trac Bar 1in-14 RH Thread

Vendor: RockJock
SKU: ROKRJ-305301-102
Availability: Out of stock
Product type: Suspension Arms & Components
$142.99
Description

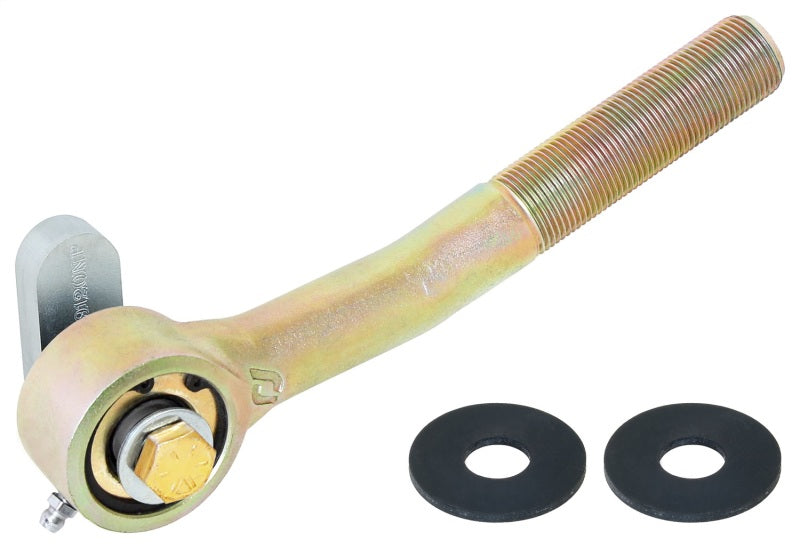

RockJocks narrow forged Johnny Joints for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushing that encases the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint is a 2 in. diameter, narrow body and features a 9 in. long shank, from CL of joint to end of tip of threads), 3 1/2 in. of 1 in.-14 RH threads and a 1.600 in. wide x .510 in. thru-hole center pivot ball. Being that, in our applications, we use this specific joint in TJ, LJ, XJ, MJ and XJ front trac bars, the shank portion features a 12 degree vertical bend, 3 1/2 in. from the joint Cl, as seen in the photo, making it specific to fitment in this application. Finish is gold zinc plating. RockJock Forged Johnny Joint Rod Ends are found incorporated into our suspension kits and components, but are also available individually for universal usage when custom suspension is being fabricated. Joint is externally greasable via a zerk fitting. Finish is gold zinc plating.
Photo - Primary
RockJock TJ/LJ/XJ/MJ/ZJ Johnny Joint Rod End 2in Narrow Front Trac Bar 1in-14 RH Thread
$142.99
